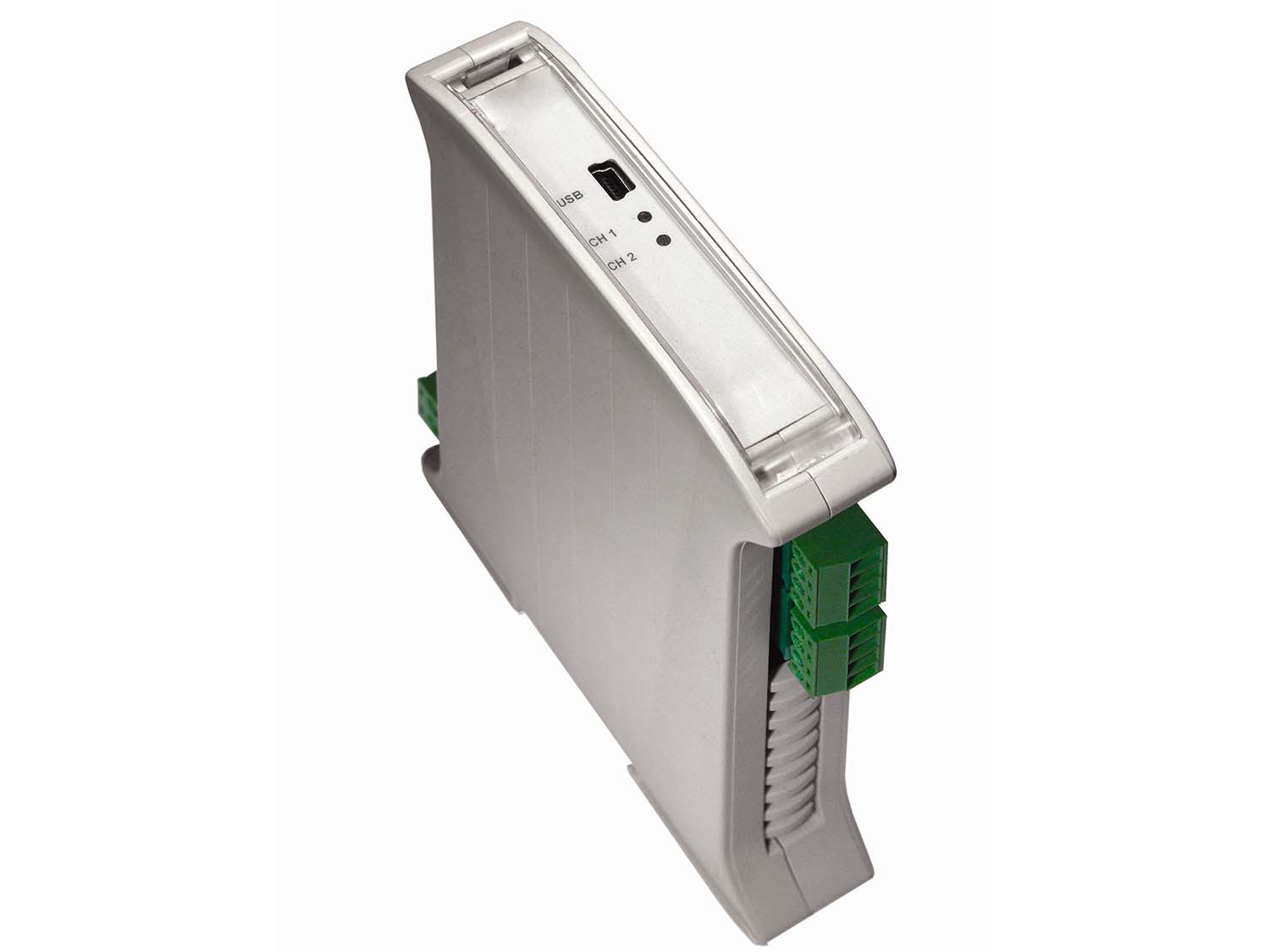

KOS1750 is a dual channel signal conditioner designed to accept mA or voltage inputs and provide isolated, industrial process output signals in mA or Volts.
Each output channel may be linked to either an input signal or to a maths function of both input signals. This powerful feature allows the device to operate in several different modes.
The output signal can also be adjusted over the full working ranges (0 to 20) mA or (0 to 10) V, to provide common or custom process signals, examples (4 to 20) mA, (0 to 1) mA, (1 to 5) V.
The KOS1750 is configured using the free software that allows the user to configure the device without requiring calibration equipment.
Maths functions on each channel can be set up using the software as well as a 22-segment profile tool.
Input/output simulation tools for diagnostic purposes are also available.
- TWO mA OR VOLTAGE PROCESS SIGNAL INPUTS
- TWO ISOLATED mA OR VOLTAGE OUTPUTS
- ISOLATED UNIVERSAL AC/DC POWER SUPPLY
- MATHS AND PROFILING TOOLS IN SOFTWARE
- DIRECT USB CONFIGURATION
- LOOP POWER SUPPLY FOR I/Ps AND O/Ps
