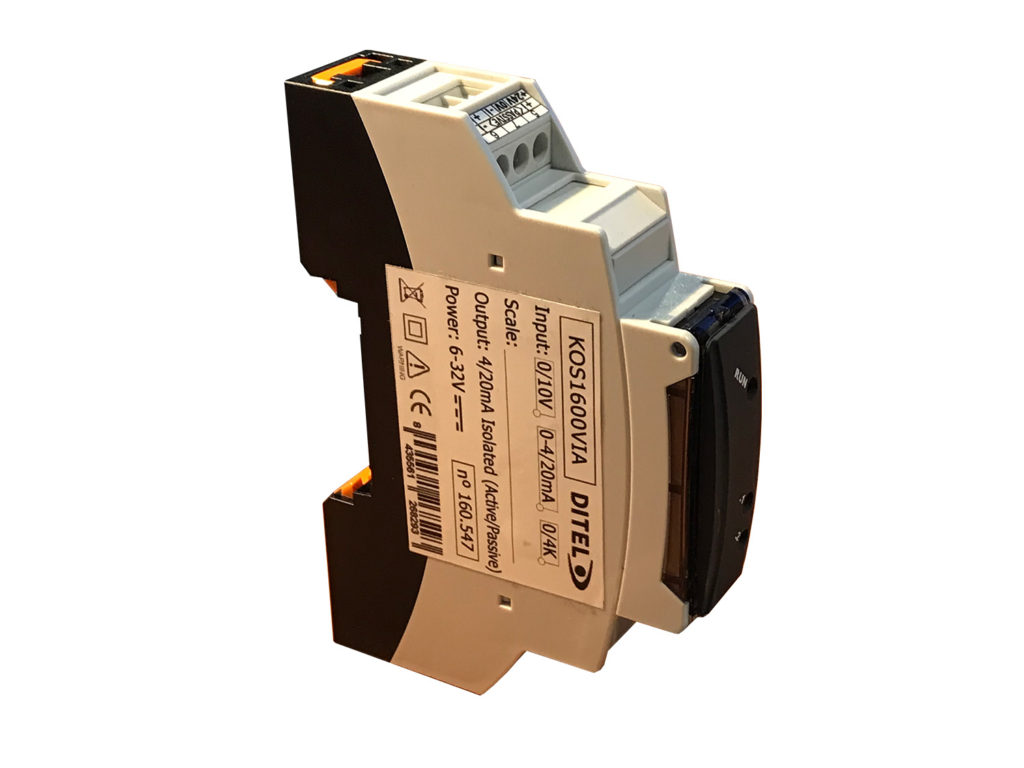

Isolator for DIN rail with 4-20mA output for voltage, current and resistance variables in industrial environments with excellent EMC characteristics.
The output is isolated, with a high load capacity in the loop that allows a wide supply range from 6V to 32V DC (protected against polarity reversal).
The output connection can be made with 2 wires (passive) or 3 wires (Active).
It has an intelligent adaptive filter to stabilize the signal.
It allows a very fast and simple configuration through a mobile APP, through wireless communication of the module with a smartphone. Configuration via PC software is also possible.
It has an internal data-logger that continuously records the variable for later transfer to the computer or smartphone, and the data and configuration can be sent by email.
- WIRELESS PROGRAMMING (RFID)
- CONFIGURATION APP FROM MOBILE
- LED STATUS INDICATOR
- INPUT V, I, Ω
- HIGH ACCURACY (16 BIT A/D CONVERTER)
- DATA LOGGER
- ACTIVE / PASSIVE OUTPUT
- INPUT / OUTPUT INSULATION
- ERROR CORRECTION (OFFSET)
