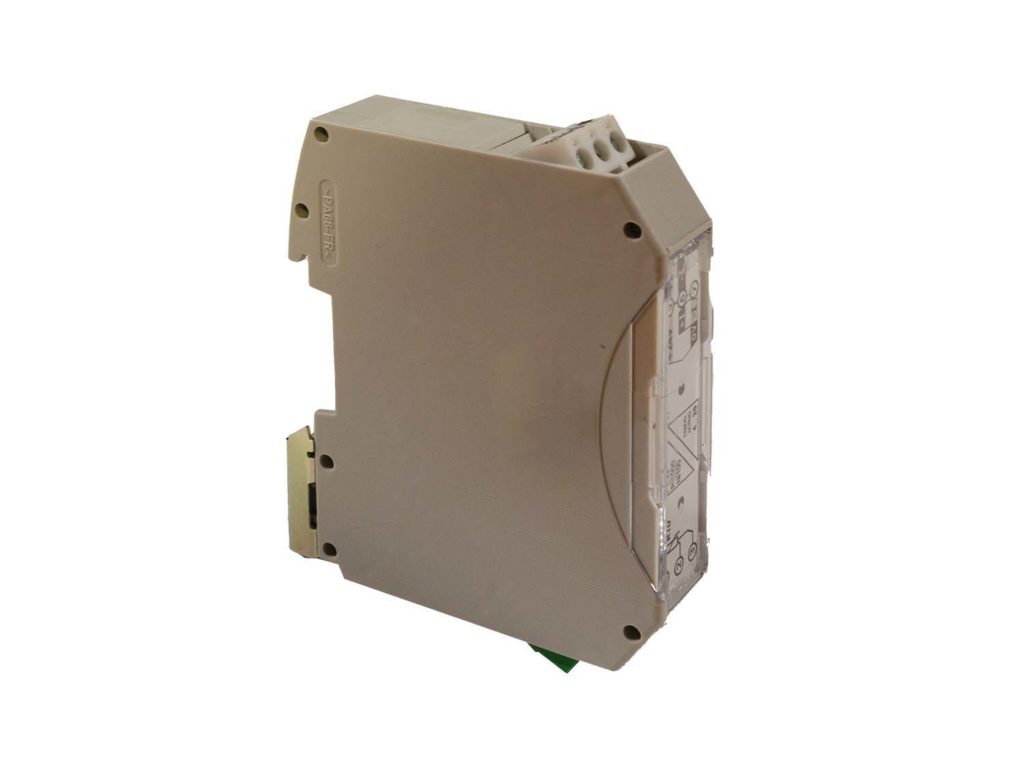

Isolators with 1 and 2 (DUAL version) independent channels of signals 4-20mA (ACTIVE/PASSIVE) at 0-10V, galvanically separate measurement circuits.
They are protected at their inputs and outputs against overcurrents and overvoltages by resettable protectors.
Independent excitation is available for each 4-20mA input for each loop.
They have 3-way insulation: input/output/power supply.
By means of coded plug-in terminals, they allow quick module changes and protect against mistakes.
Isolates the signals galvanically and decouples the measurement circuits.
Galvanic separation protects against overvoltage destruction and inductive and capacitive interference.
- PROTECTED AGAINST OVERCURRENTS AT INPUT AND OUTPUT
- VERY LOW THERMAL DRIFT ≤25ppm
- HIGH INSULATION 3000V
- GREAT SPACE AND COST SAVINGS
- HIGH RELIABILITY > 500000h
- VERY HIGH PRECISION AND LINEARITY 0.06%
- PLUG-IN TERMINALS
