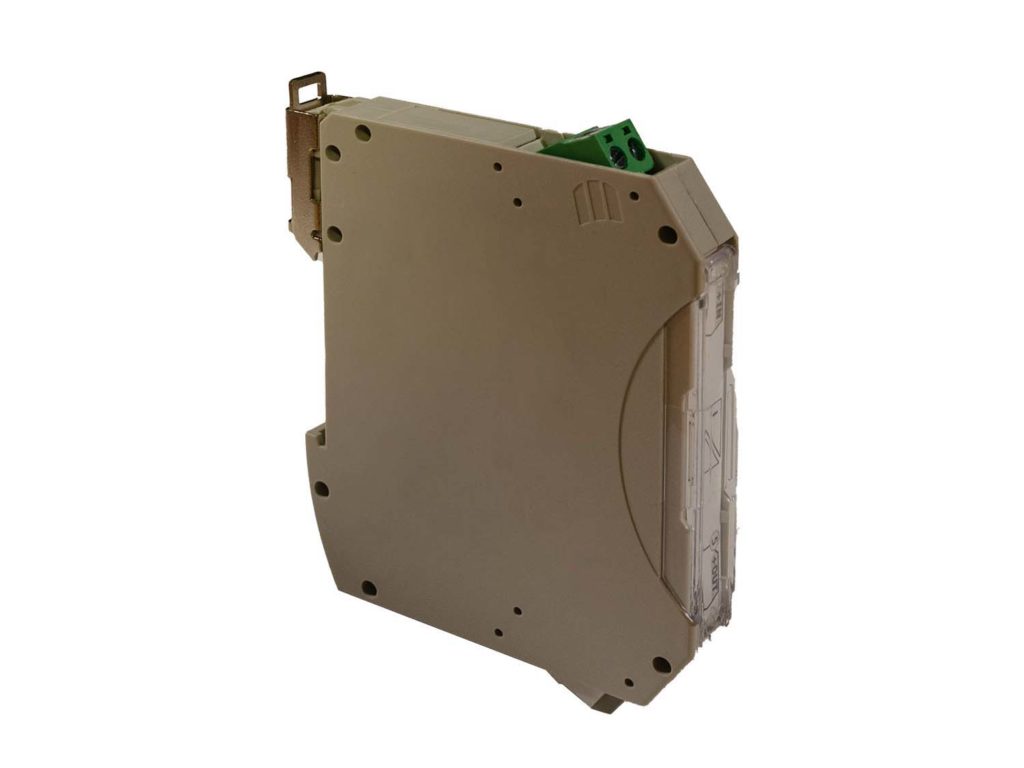

Transmitter with 4-20mA output for 2-3-4-wire Pt100, Pt1000 and Ni100 sensors, for temperature measurement in industrial environments, with excellent EMC characteristics.
It allows remote transmission of temperature, safely and immunity to interference.
The output is linearized with temperature, with a high loop load capacity that allows a wide supply range from 6V to 32V (reverse polarity protected). Allows connection to 2 wires (Passive) or 3 wires (Active).
It has an intelligent adaptive filter to stabilize the signal.
It allows a very fast and simple configuration through mobile APP, through wireless communication of the module with a smartphone. Also through PC software.
It has an internal data-logger that continuously records the temperature for later transfer to the computer or smartphone, and the data and configuration can be sent by email.
High precision through 16-bit A/D converter (<0.1ºC). The terminals are differentiated by color preventing an erroneous connection of inputs by outputs.
- WIRELESS PROGRAMMING (RFID)
- CONFIGURATION APP FROM MOBILE
- GREAT LOAD CAPACITY
- HIGH ACCURACY (16 bit A/D CONVERTER)
- ACTIVE / PASSIVE OUTPUT
- DATA LOGGER
- WIDE RANGE OF POWER
- ERROR CORRECTION (OFFSET)
- TROPICALIZED CIRCUITS
