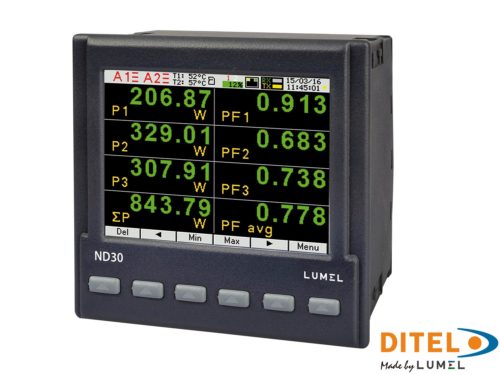

Power network meter ND30

Power network meter with Ethernet, recording and graphical screen ND30PNET

• Measurement and recording of 54 power supply network parameters, including up to 51th harmonic voltage and current, in balanced 1-phase 2-wire or 3-phase or 4-wire balanced and unbalanced systems.
• Graphic color screen: 3.5-inch TFT LCD, 320 x 240 pixels, fully configurable by a user (10 tracks, 8 parameters in each)
• The indications include the values ​​of the programmed transformation ratios.
• Memory of minimum and maximum values.
• 2 configurable alarm outputs.
• Optional: 0/4 … 20 mA analog output and 2 PT 100 inputs (for example, for measuring the transformer temperature).
• Archiving of data in the internal memory 8 GB (option).
• RS-485 digital output – MODBUS protocol.
• Easy-to-use Ethernet interface 10/100 BASE-T (optional)
• Protocol: MODBUS TCP / IP, HTTP, FTP.
• Services: WWW server, FTP server, DHCP client
• Programming parameters using free eCon software
• RTC reserve battery.
• Overall dimensions: 96 x 96 x 77 mm.

EXAMPLE OF APPLICATION ND30
