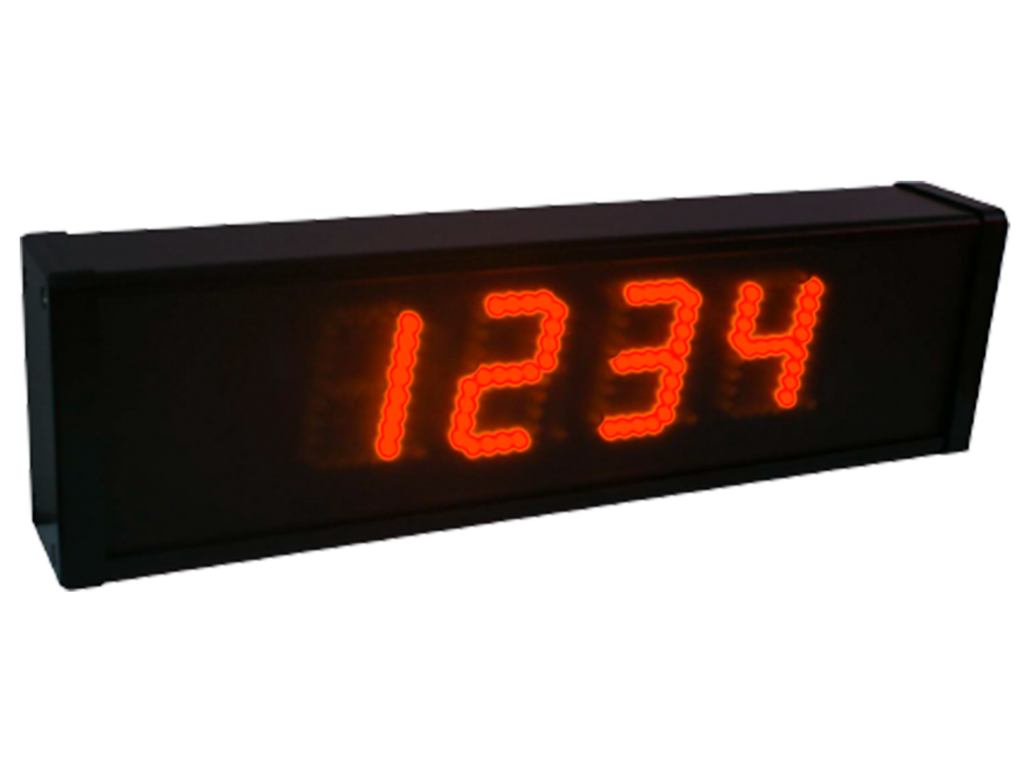

The DMNE6_RF is a product of the DMNE series of numerical monocolor displays. It has a character height of 60mm, obtaining a maximum readability distance of 25 m.
The digits are represented through the lines that form the 7 segments.
The markers can be 3, 4, 5 or 6 digits depending on the model.
The LEDs are monochrome red, although they can be optionally ordered in white or amber..
It has a brightness sensor to automatically adjust the intensity of the LEDs according to the brightness.
IP54 protection.
Native mini USB communication.
It also allows you to choose a communication module according to needs:
X module -> RS232 or RS485 Serial Communication
NE module -> Ethernet TCP/IP Communication
NW module -> WiFi Communication
AN module -> 2 analog inputs 0-10V or 4-20mA configurable
K4 module-> 4 inputs
MPTools software for Windows. This software allows us to establish numerical values, as well as modify its configuration.
The chassis is manufactured by using extruded aluminum profile, guaranteeing maximum robustness of the equipment, as well as its minimum weight.
