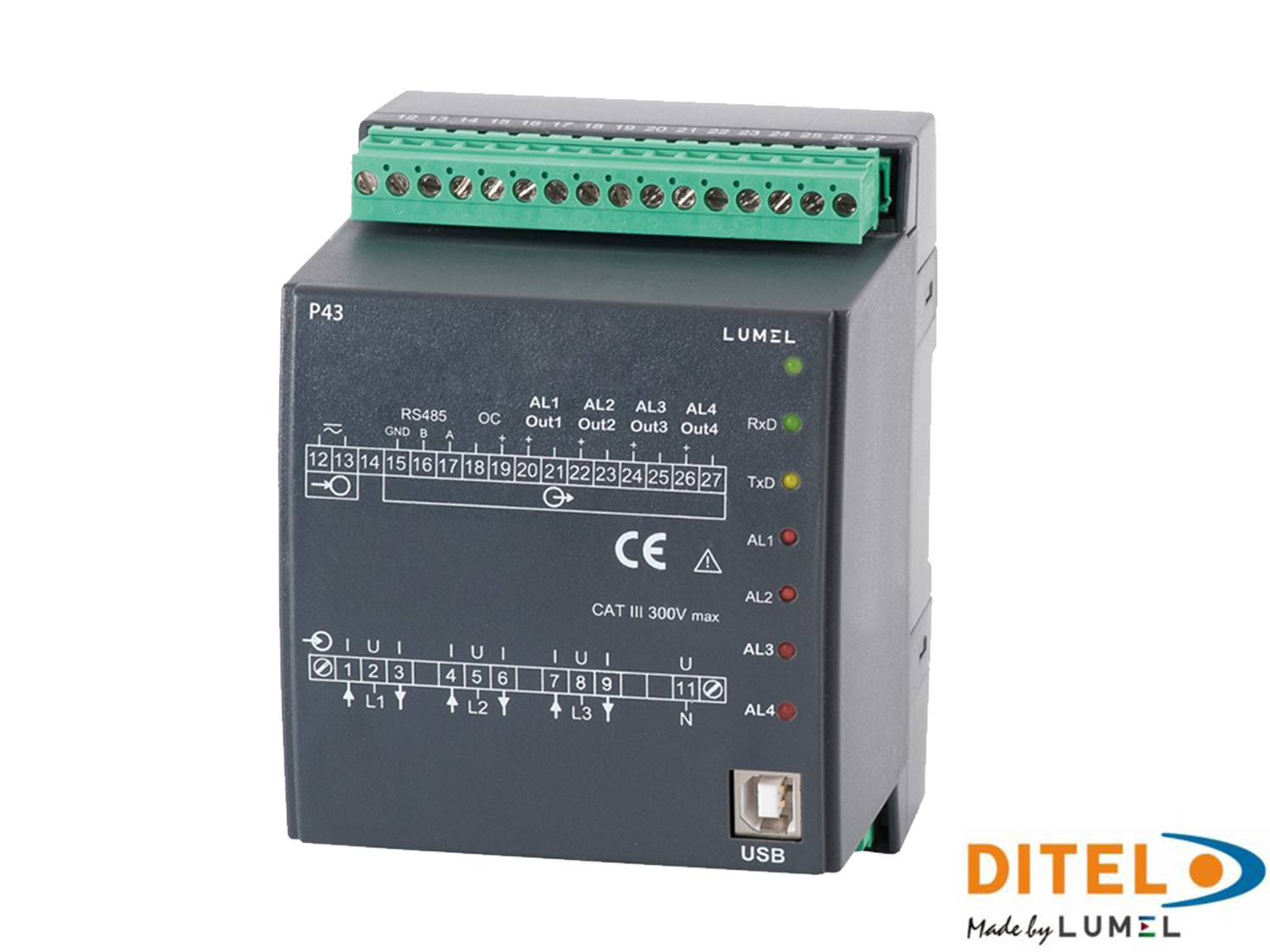

3-phase transducer of power network parameters P43

P43 is destined for the conversion of 3-phase, 3 or 4-wire power network parameters, in balanced or unbalanced systems.

Features and functions:

• Input signals:
  • Current: 1A or 5A
  • Voltage: 100 or 400V
• Output:
  • 4 relays (signaling measured quantity overflows), without analog outputs
  • 2 relays, 2 analog outputs
  • 4 analog outputs, without relay outputs
• Pulse output (control of 3-phase active energy consumption)
• RS-485 and USB interfaces with Modbus protocol
• Built-in memory for the 15 minutes’ power profile
• Storage of maximal and minimal values
• Galvanic isolation
• Programmable current and voltage transformer ratios
• Transducer programming realized by means of a free eCon software,
• Dimensions: 90 x 120 x 100 mm.
